Guidewire with Trocar Tip, 1.1 mm x 150 mm

Führungsdraht, mit Trokarspitze, 1.1 mm × 150 mm, Vet

Guide Wire with Trocar Tip, .045'' x 5.91'' (1.1 mm x 150 mm)

Finished Product

VAR-8933K

Vet Systems - Small Animal

Product

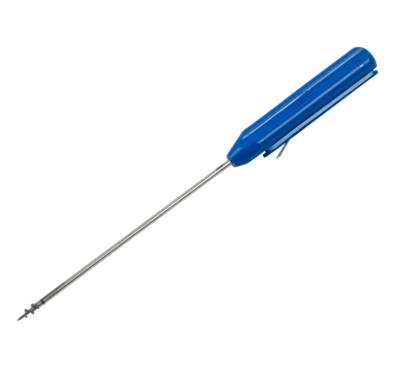

Corkscrew suture anchors are designed with a fully threaded length to create maximum cortical purchase in smaller bones. Using an internal drive mechanism and suture eyelet, these titanium anchors enable surgeons to secure threads in the best bone—the cortex.

Corkscrew® Anchor

Corkscrew 5 x 15.5 mm w/one #5 FiberWire, qty. 5

Corkscrew, Fadenanker, 5 mm x 15.5 mm, mit #5 FiberWire, Vet

Suture Anchor, Corkscrew, 5 x 15.5 mm, with #5 FiberWire

Anclaje de sutura Corkscrew,5 mm x 15.5 mm con FiberWire #5

Human

Child (D)

Vet Systems - Large Animal

Threaded suture anchors reduce the risk of tissue separation due to anchor slip. Not only do threaded anchors deliver more security than Nitinol arc "barbed" suture anchors, they also provide a path for removal, if needed. Offering excellent strength in a smaller size, this nonabsorbable, braided polyblend suture is preloaded for convenience. The short inserter and self-drilling design create a reliable and quick procedure.

FASTak™ Suture Anchor

The Arthrex Vet MPL plates follow the same anatomic engineering aspects of the Tibial Plateau Leveling Osteotomy (TPLO) Plating System with additional features to address medial patella luxation.&nbsp; The MPL plate includes a step to offset the fragment from the long bone of the tibia creating medial tibial plateau translation and a locking screw distal to the cut protecting the osteotomy.&nbsp; The plates are also designed to have proximal and distal locking holes to be less prominent under the skin. Proximal screw holes with specific trajectories within the proximal fragment. The distal end has limited bone contact and is designed with two k-wire holes to aid in positioning, the plates are also contoured to the bone, marked with a laser line for optimal positioning and step location. Additionally, the plates include a suture hole proximally for the application of an InternalBrace™ ligament augmentation, providing rotational stability. Finally, the distal end of the plate incorporates VetSuture holes on the cranial aspect to aid in soft tissue closure.&nbsp; The Arthrex Vet MPL Plating System has been created by veterinarians for veterinarians making a more reproducible procedure for happier and healthier patients.&nbsp;

Size range includes 1.6 mm, 2.0 mm, 2.4 mm, 2.7 mm, 3.0 mm, 3.5 mm small, 3.5 mm standard, and 3.5 mm broad in left and right options.

Key Features and Benefits
<ul>
 <li>Step to offset the fragment including slight torsional rotation on smaller sizes</li>
 <li>Proximal screw trajectories avoid the joint</li>
 <li>Distal suture hole to aid in soft tissue closure</li>
 <li>Scalloped underside to distribute stress and minimize contact</li>
 <li>Proximal suture hole to support rotational stability</li>
 <li>Multiple K-wire holes allow surgeons to choose what is best for the patient</li>
 <li>Distal locking hole to protect the osteotomy site</li>
 <li>Laser line represents the location of the step</li>
 <li>Anatomic plate design with left and right options</li>
</ul>

OrthoLine™ Medial Patella Luxation (MPL) System

The OrthoLine fracture management system allows the surgeon to perform a fracture repair with the same screws used in the TPLO System. The 99-plate, state-of-the-art fracture line includes sizes 1.6 mm, 1.6 mm broad, 2.0 mm, 2.4 mm, 3.0 mm, and 3.5 mm for straight and T-style plates and 3.5 mm broad straight plates for both feline and canine patients.
Designed with the surgeon in mind, the plates have many features to help create a more reproducible procedure. The locking straight plates include a slide hole, which allows slight movement across the fracture line to facilitate the best plate placement. The low-profile design reduces prominence under the skin and features, limiting bone-to-plate contact. Plate size and length were specifically designed to include hole-to-hole spacing.
Tight screw density on the distal and proximal ends with larger bridges near the center of the plate allows surgeons to fit more screws in the same footprint than competitive plates. Additional features designed to aid in proper plate placement include K-wire holes, variable-angle locking screws for the titanium lines, slide holes, and compression holes. OrthoLine plates can be contoured using size-specific bending irons and cannulated bending plugs, which can also function as K-wire holes in any locking screw hole.
In addition to the new OrthoLine fracture plates, the fracture management system includes a variety of screw options, including fully threaded headless compression screws, partially threaded screws, cannulated lag screws, low-profile screws, KreuLock™ locking compression screws, and QuickFix™ cannulated screws.
<ul>
 <li>Accommodates high screw density where needed</li>
 <li>Slide and compression holes</li>
 <li>Strong plate for bridging</li>
 <li>Low plate contact and low profile</li>
 <li>Color coded for easier identification</li>
 <li>K-wire holes</li>
 <li>Cortical/locking/variable-angle locking screws</li>
 <li>Indicated for sizes from small cats to large dogs</li>
</ul>

OrthoLine™ Fracture System

The OrthoLine distal femur osteotomy system incorporated surgeon input with key engineering features for an innovative design that is specific to small animal anatomy. The state-of-the-art plating line includes several key features.
&nbsp;
<ul>
 <li>Anatomic design</li>
 <li>Accommodates high screw density where needed&nbsp;</li>
 <li>Specific screw trajectories</li>
 <li>Low plate-to-bone contact, tapered ends, and low profile</li>
 <li>Color-coded for easy identification</li>
 <li>K-wire holes</li>
 <li>Cortical/locking/variable-angle locking screws</li>
 <li>Suture hole to facilitate soft-tissue closure and support</li>
</ul>

OrthoLine™ Distal Femur Osteotomy System

The OrthoLine radial fracture plate system includes 1.6 mm, 1.6 mm broad, 2.0 mm, 2.4 mm, 3.0 mm, and 3.5 mm sizes. Each plate is anatomically contoured to mimic the anatomy of patients within a given size range. The system features multiplanar distal screw trajectories and centrally aligned proximal screws to improve screw pullout. The plates are thinner than standard T-plates or straight plates, minimizing soft-tissue interference. The tubular bottom enhances conformity to the patient’s bone structure and increases the area moment of inertia. Additionally, the unique design includes bending plugs, multiple K-wire holes for preliminary placement, and a fracture-spanning bridge with a compression screw hole that provides compression across the fracture site while sparing the abductor pollicis longus tendon in a cranial-medial placement. While the plates are primarily designed for cranial-medial placement, they can also be used for for cranial-lateral placement with the contralateral side plate.
&nbsp;
Features and Benefits
<ul>
 <li>Designed for distal radial fractures</li>
 <li>Multiplanar distal screws</li>
 <li>Proximal screw trajectories designed to align centrally in the bone</li>
 <li>Anatomic plate design with left and right options</li>
 <li>Accommodates high screw density where needed</li>
 <li>Tapered design to avoid soft-tissue irritation</li>
 <li>Compression hole</li>
 <li>Fracture-spanning bridge</li>
 <li>Two placement options</li>
</ul>

OrthoLine™ Radial Fracture System

The OrthoLine distal humeral fracture system is the first plate of its kind to incorporate a transcondylar screw for distal humeral medial, supracondylar, Y-shaped, and T-shaped fractures.

Designed with the surgeon in mind, OrthoLine distal humeral plates are anatomic, incorporating the transcondylar screw within the construct and including specific trajectory to help with proper transcondylar screw placement. Screws are compatible across the OrthoLine plate line and with the Arthrex TPLO system. Products are available in sizes 1.6 mm/2.0 mm, 2.4 mm, 3.0 mm, and 3.5 mm plates for both feline and canine patients.

Repair medial, supracondylar, Y-shaped, and T-shaped fractures with a single plate construct using a K-wire on the lateral aspect for Y-shaped and T-shaped fractures when placing the plate medially. The epicondylar oval hole helps the surgeon find the right location to facilitate the best plate placement and allows relief for the epicondyle.

OrthoLine™ Distal Humeral Fracture System

The OrthoLine femur fracture system includes two innovative anatomic femur designs. The proximal femur plate and distal femur plate systems were designed with surgeon input and key engineering features. Specific to small animal patients, the state-of-the-art plating line includes several key features.
&nbsp;
<ul>
 <li>Anatomic design</li>
 <li>Accommodates high screw density where needed</li>
 <li>Specific screw trajectories</li>
 <li>Low plate-to-bone contact, tapered ends, and low profile</li>
 <li>Color-coded for easier identification</li>
 <li>K-wire holes</li>
 <li>Cortical/locking/variable-angle locking screws</li>
 <li>Suture hole to facilitate soft-tissue closure and support</li>
</ul>

OrthoLine™ Femur Fracture System

The OrthoLine ilial fracture plate system includes sizes of 1.6 mm, 2.0 mm, 2.4 mm, 3.0 mm, 3.5mm, and an extended 3.5 mm plate for larger dogs. Each plate is anatomically contoured to mimic the anatomy of patients within a given size range. The plates feature cranial divergent screw trajectories to improve purchase in the cranial ilium. The caudal screw trajectories are more dorsally oriented to avoid the coxofemoral joint.&nbsp; Additionally, the ilial plate includes a suture hole paired with Arthrex VetSuture for apposition of the gluteal musculature at closure.&nbsp;
&nbsp;
Features and Benefits
<ul>
 <li>Designed for cranial, caudal, and oblique fracture patterns</li>
 <li>Divergent cranial screw trajectories for added pullout strength</li>
 <li>Caudal screw trajectories to avoid the coxofemoral joint</li>
 <li>Anatomic plate design with left and right options</li>
 <li>Accommodates high screw density where needed</li>
 <li>Suture hole to aid in soft-tissue closure</li>
 <li>Scalloped underside to distribute stress and minimize contact</li>
</ul>

OrthoLine™ Ilial Fracture System

The PushLock suture anchor is offered for CCLs and soft tissue-to-bone reattachment. Made with an inert, radiolucent, and nonabsorbable thermoplastic material called PEEK, this anchoring system allows for knotted or knotless reconstructions. Available in 2.4 mm, 2.5 mm, and 2.9 mm sizes for use in smaller bones.

PushLock® Anchors

The SwiveLock anchor is offered for CCLs and soft tissue-to-bone reattachment. Made with an inert, radiolucent, and non-absorbable thermosplastic material called PEEK, this anchoring system allows for knotted or knotless reconstructions. Common sizes include 3.5 mm, 4.75 mm, and 5.5 mm sizes. Specifically designed vents in the anchor body promote bone marrow flow and allow for bony ingrowth.

SwiveLock® Anchors

Kirschner wires, or K-wires, are used for temporary fixation during some orthopedic operations. After definitive fixation, they should be removed.

Use K-wires to:
<ul>
 <li>Help rotate the proximal bone fragment</li>
 <li>Hold the rotated proximal bone fragment in place during the TPLO procedure</li>
 <li>Secure jig pin to the bone</li>
 <li>Hold the TPLO plate during placement</li>
</ul>

Guidewire with Trocar Tip, 1.1 mm x 150 mm

VAR-8933K
