T-Platte, zuschneidbar, 21-Loch, Titan, 1.6 mm

Finished Product

VAR-3116CT-21

Vet Systems - Small Animal

Product

The cuttable straight plates are designed to offer multiple options and applications for veterinary orthopedic surgery. Each plate features three tight hole-to-hole spacings on either end, followed by a bridge on one side and a transition hole. Additionally, there is another set of three tight hole-to-hole spacings on the side with the bridge. The central hole spacing is larger, allowing for in-plane bending of approximately 7° to 8° before deformation of the screw hole occurs. This design provides flexibility and precision in various surgical scenarios.&nbsp;

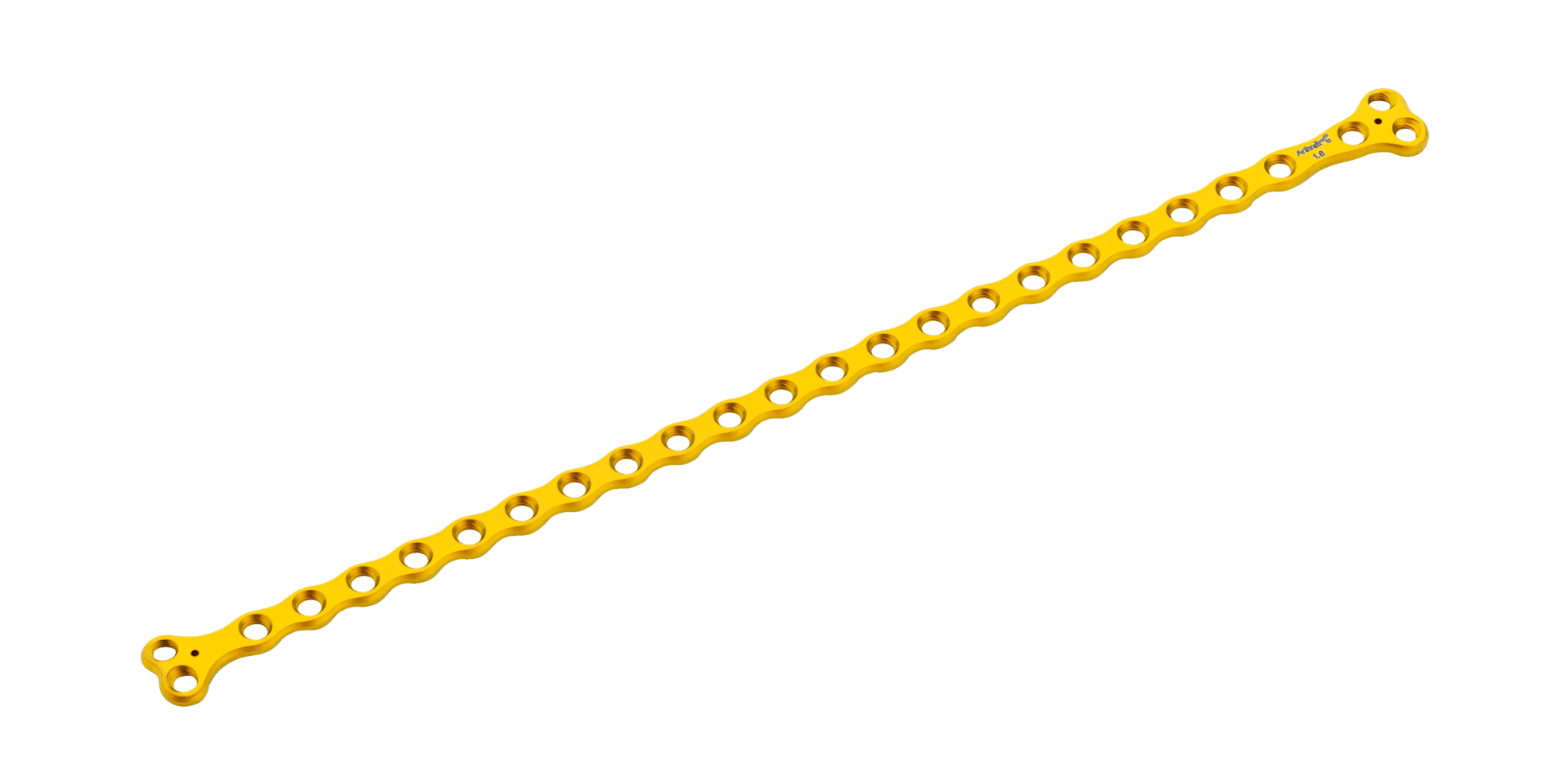

The cuttable T-plates are designed to be placed in a juxta-articular fashion and cut to size. The design includes a 3-hole T on one side and a 2-hole T on the opposite side, following a bridge design with uniform hole-to-hole spacing throughout centrally. The central hole spacing allows for in-plane bending of up to 7° to 8°. This design ensures adaptability and precise placement in complex orthopedic procedures.

T-plate, cuttable, 21 hole, Titanium, 1.6 mm

VAR-3116CT-21
